One Talk Desk Phone - Set Up Intercom Key

T41/T46G
T41S / SW and T42S
T46S / SW
T49G
VZP59
CP960



T41/T46G

  1. From the home screen, press and hold an empty softkey.
    Empty softkey
  2. From the type field, press Intercom softkey.
    Tipo
  3. Enter the appropriate information then press the Save softkey.
    Nota The user gets a prompt to enter the extension number if left blank.
    • Etiqueta
    • Value (extension number).
    intercom info



Temas relacionados:



Arriba



T41S / SW and T42S

  1. From the Home screen, press and hold an empty soft key.

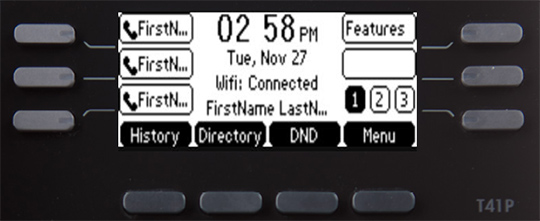

    Press and hold an empty soft key
  2. From the Type field, press the Intercom soft key.

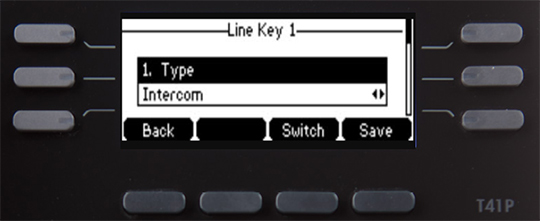

    Press Intercom key
  3. Enter the appropriate information then press the Save soft key:
    Nota The phone prompts for an extension number if left blank.
    • Etiqueta
    • Value (extension number)
    Enter label and extension number



Temas relacionados:



Arriba



T46S / SW

  1. From the Home screen, press and hold an empty soft key.

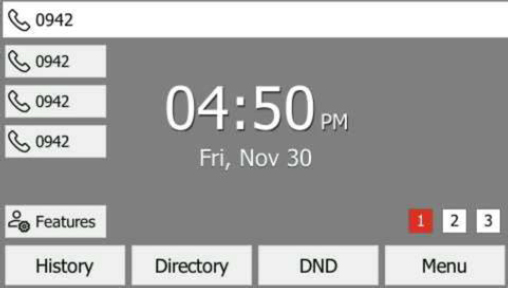

    Press and hold an empty soft key
  2. From the Type field, press the Intercom soft key.

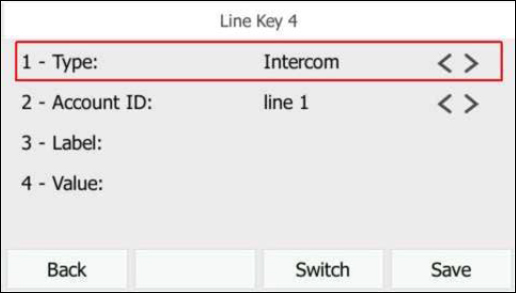

    Press Intercom key
  3. Enter the appropriate information then press the Save soft key:
    Nota The phone prompts for an extension number if left blank.
    • Etiqueta
    • Value (extension number)

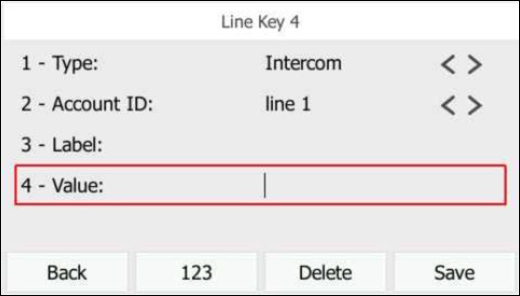

    Enter label and extension number



Temas relacionados:



Arriba



T49G

  1. From the home screen, press and hold an empty Line key button.
    Empty line key
  2. From the type field, tap Intercom.
    tap intercom
  3. Enter the appropriate information then tap Save.
    Nota The user gets a prompt to enter the extension number if left blank.
    • Etiqueta
    • Value (extension number).
    Enter the info



Temas relacionados:



Arriba



VZP59

  1. From the desk phone display, swipe left or right to go to the second idle screen.
  2. Navigate: Settings > Features > Intercom.
  3. Select the preferred line key.
  4. From the Type field, select Intercom.
  5. From the Account ID field, select the preferred line.
  6. From the Label field, enter the text that will appear on the touch screen (optional).
  7. From the Value field, enter the phone number or extension you want to monitor.
  8. Tap the Save icon Ícono Save.



Temas relacionados:



Arriba



CP960

  1. From the Home screen, swipe right to go to the DSS key screen.
  2. Select the preferred line key.
  3. From the Type field, select Intercom.
  4. From the Account ID field, select the preferred line.
  5. From the Label field, enter the text that will appear on the touch screen (optional).
  6. From the Value field, enter the phone number or extension you want to monitor.
  7. Tap the Save icon Ícono Save.



Temas relacionados:



Arriba
