One Talk Desk Phone - Set Up Wi-Fi

Select the desk phone model to setup Wi-Fi:

T41 / CP860 / One Talk DECT IP Cordless Phone - W56HV
T41S/SW and T42S
T46/46G
T46S/SW
T49
VZP59
CP920
CP960



T41 / CP860 / One Talk DECT IP Cordless Phone - W56HV

The T41, CP860 and One Talk DECT IP Cordless Phone models don't support a Wi-Fi dongle.



Arriba



T41S/SW and T42S

Nota Notas:

  • The WF50 USB Wi-Fi adapter:
    • is included with the T41SW model and sold separately for T41S and T42S models.
    • supports connecting to 2.4 GHz and 5 GHz Wi-Fi networks.
    • is not compatible with previous One Talk desk phone models.
  • The WF40 USB Wi-Fi adapter can also be used with these desk phone models.



  1. From the Home screen, press the Menu soft key.
    Phone idle screen with emphasis on Menu soft key
  2. Using the navigation keys, select Settings then press OK.
    Phone menu with emphasis on Enter soft key
  3. Select Basic.

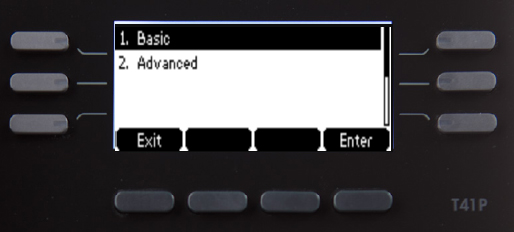

    Settings screen with Basic highlighted
  4. Scroll to Wi-Fi then press the Enter soft key.
    Basic Settings screen with Wi-Fi highlighted
  5. Press the Switch soft key to turn Wi-Fi on then press the Save soft key.
    Nota Ensure the Wi-Fi dongle is inserted into the USB port on the back of the phone.
    Nota The phone automatically searches for available networks.
    Nota If no networks appear, press the Scan soft key.

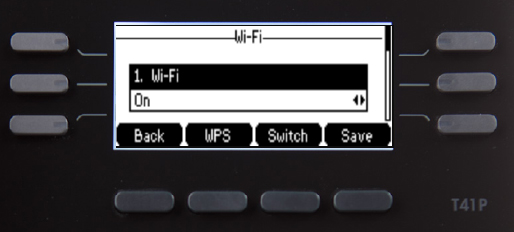

    Wi-Fi settings screen
  6. Press the down arrow to see available networks.

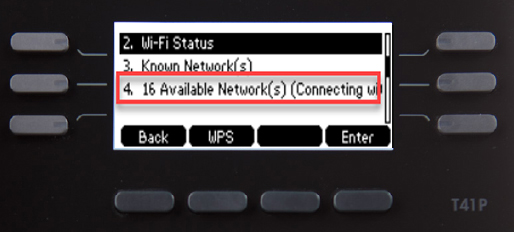

    Select to view network list
  7. Using the up and down arrows, select the preferred network then press the Connect soft key.

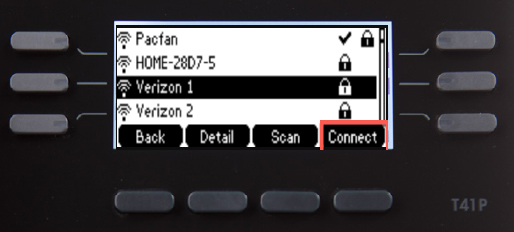

    Network list with emphasis on Connect soft key

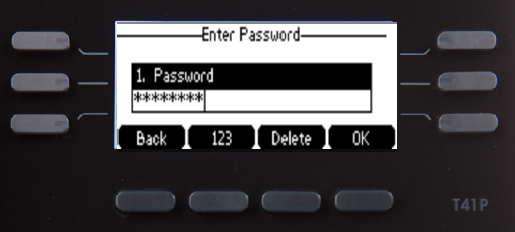

  8. If prompted, enter the Wi-Fi password then press OK.
    Nota You can change the key entry type, e.g., abc, ABC, 123 by pressing the second soft key from the left, under the screen.
    Nota To enter special characters, select 'abc' entry mode then use the * key to cycle through available special characters.
    Pantalla de ingreso de contraseña



Arriba



T46/46G

Nota The WF40 USB Wi-Fi adapter is sold separately. For more information, click aquí.

  1. Press the Menu soft key.
  2. Select Basic.
  3. Select Wi-Fi.
    Nota If no networks appear, press the Scan soft key at the bottom of the screen.
  4. Select storage network or available networks then highlight the desired network.
  5. Select Options then Connect.
  6. Enter the password by using the keypad.
    Nota You can change the key entry type, e.g., abc, ABC, 123 by pressing the second soft key from the left, under the screen.
  7. Press the Save soft key.
    Nota Use the * key to enter special characters such as !, ?, or *.
  8. To delete a Wi-Fi connection:
    1. Press the Menu soft key.
    2. Select Basic.
    3. Select Wi-Fi.
    4. Select Storage Network.
    5. Select Option soft key.
    6. Select Delete network.



Arriba



T46S/SW

Nota Notas:

  • The WF50 USB Wi-Fi adapter:
    • is included with the T46SW model and sold separately for the T46S model.
    • supports connecting to 2.4 GHz and 5 GHz Wi-Fi networks.
    • is not compatible with previous One Talk desk phone models.
  • The WF40 USB Wi-Fi adapter can also be used with these desk phone models.



  1. From the Home screen, press the Menu soft key.
  2. Using the navigation keys, select Basic then press OK.

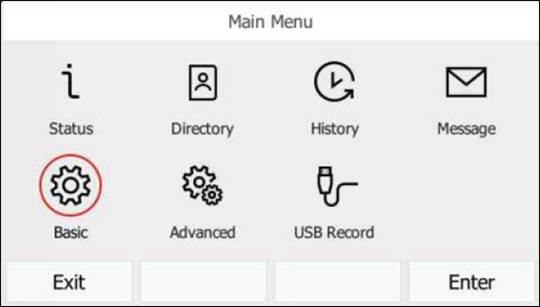

    Menu screen with emphasis on Basic
  3. Select Wi-Fi then press the Enter soft key.
    Basic Settings screen with Wi-Fi highlighted
  4. Press the Switch soft key to turn Wi-Fi on.
    Wi-Fi settings screen with emphasis on Switch soft key
  5. Press the Save soft key.
    Nota The phone automatically searches for available networks.

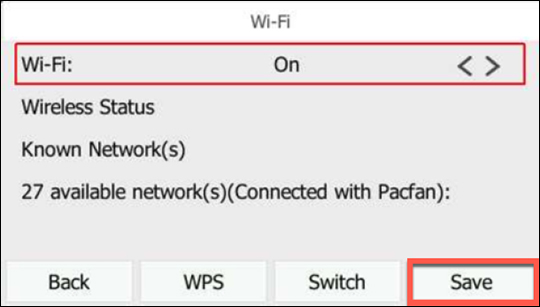

    Wi-Fi settings screen with emphasis on Save soft key
  6. Select the preferred network then press the Connect soft key.

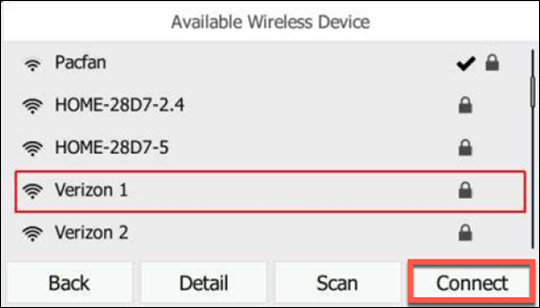

    Network list with emphasis on Connect soft key
  7. If prompted, enter the Wi-Fi password then press OK.
    Nota You can change the key entry type, e.g., abc, ABC, 123 by pressing the second soft key from the left, under the screen.

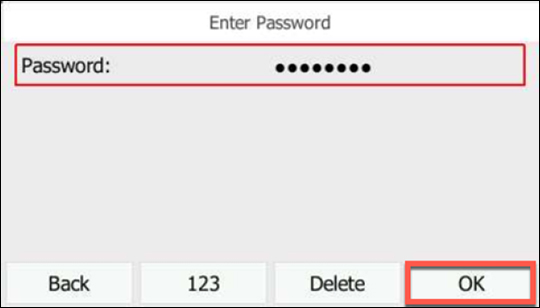

    Password entry screen with emphasis on OK soft key



Arriba



T49

  1. Oprime Menu.
  2. Tap Basic.
  3. Oprime Wi-Fi.
    Nota If no networks appear, press the Scan soft key at the bottom of the screen.
  4. Tap storage network or available networks.
  5. Tap the Menu icon (located to the left of the network name).
  6. Tap Edit then enter or change the password.
  7. Oprime Guardar.
  8. To delete a Wi-Fi connection:
    1. Oprime Menu.
    2. Tap Basic.
    3. Oprime Wi-Fi.
    4. Tap Storage Network.
    5. Oprime el ícono Menu Ícono de menú (located to the right of the network you wish to delete).
    6. Selecciona Delete.



Arriba



VZP59

  1. From the desk phone display, swipe left or right to go to the second idle screen.
  2. Navigate: Settings > Basic > Wi-Fi.
  3. Tap Wi-Fi to turn on.
  4. Tap the desired network (SSID) to connect to it.
    Nota If the network you want to connect to isn't available, tap the Options icon Ícono Options then tap Scan to search for available networks.
  5. If the network is secure, enter its password in the Password field then tap Connect.
    Nota Tap (check) Show password to show characters as they're being entered.
    Nota If necessary, tap (check) Show advanced options to configure the HTTP proxy for the Browser application.
  6. To delete a Wi-Fi connection:
    1. From the desk phone display, swipe left or right to go to the second idle screen.
    2. Navigate: Settings > Basic > Wi-Fi.
    3. Tap the connected network.
      Nota The connected network appears at the top.
    4. Oprime Forget.



Arriba



CP920

  1. Oprime Menu.
  2. Oprime Configuración.
  3. Tap Basic.
  4. Oprime Wi-Fi.
  5. Tap the Switch soft key > Save to enable or disable Wi-Fi.
    Nota If no networks appear, press the Scan soft key at the bottom of the screen.
  6. Tap available networks.
  7. Tap the Menu icon (located to the left of the network name).
  8. Tap Edit then enter or change the password.
  9. Oprime Guardar.
  10. To delete a Wi-Fi connection:
    1. Oprime Menu.
    2. Oprime Configuración.
    3. Tap Basic.
    4. Oprime Wi-Fi.
    5. Tap the Stored Wi-Fi Ap.
    6. Tap available networks.
    7. Tap the Menu icon (located to the left of the network name you wish to delete).
    8. Oprime Delete.



Arriba



CP960

  1. En la pantalla de inicio, ve a: Settings > Basic Settings > Wi-Fi.
  2. Tap Wi-Fi mode to turn on.
  3. Oprime el control Wi-Fi para activar Interruptor en On.
  4. Tap the desired network (SSID) to connect to it.
    Nota If the network you want to connect to isn't available, tap the Options icon Ícono Options then tap Scan to search for available networks.
  5. If the network is secure, enter its password in the Password field then tap Connect.
    Nota Tap (check) Show password to show characters as they're being entered.
    Nota If necessary, tap (check) Show advanced options to configure the HTTP proxy for the Browser application.
  6. To delete a Wi-Fi connection:
    1. En la pantalla de inicio, ve a: Settings > Basic Settings > Wi-Fi.
    2. Tap the connected network.
      Nota The connected network appears at the top.
    3. Oprime Forget.



Arriba
