One Talk Desk Phone - Activate / Set Up Device

Nota Notas:

  • Para activar, se necesita una dirección de EE. UU. válida para la función E911.
  • Wi-Fi Calls always originate in the U.S., even when you're outside of the U.S.
    • Las llamadas a números de EE. UU. no se facturan (excepto al 411 y otras llamadas premium).
    • Calls to international numbers are billed according to your international long distance plan.
  • Una restablecimiento parcial is needed on the desk phone when a new endpoint is added to the One Talk MDN.



Select the desk phone model to complete the installation and setup process:

T41
T46G / GW
T49G
T41S / SW, T42S, and T46S / SW
One Talk DECT IP Phone
VZP59
CP860
CP920
CP960



T41 Setup

  1. Attach the desk mount stand.
    Desk mount

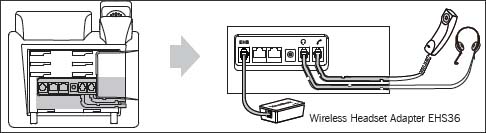

  2. Connect the headset.
    Nota The wireless headset adapter and headset are sold separately.
    Connect headset
  3. Connect the power and Ethernet by selecting one of the following options:
    Nota Contact the IT administrator before selecting the power option.
    • AC Power
    • PoE (Power over Ethernet)
    Connect power

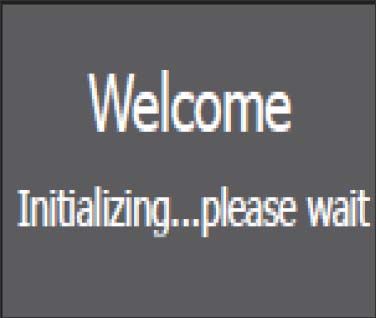

  4. The Desk phone begins the initialization process.
    Nota The process may take up to 15 minutes.
    Initialization process

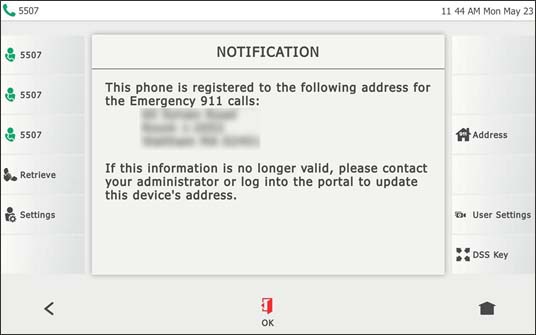

  5. After a successful activation, the 911 notification screen is displayed. Press OK.
    Dirección de emergencia



Arriba



T46G / GW Setup

  1. Attach the desk mount stand.
    Desk mount

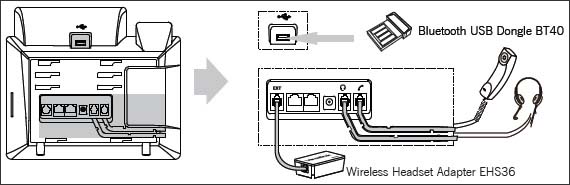

  2. Connect the headset.
    Nota The wireless headset adapter, headset and/or Bluetooth® USB dongle are sold separately.
    Connect headset
  3. Connect the power and Ethernet by selecting one of the following options:
    Nota The WF40 Wi-Fi USB Dongle is sold separately. Click aquí for setup information.
    Nota Contact your IT administrator before selecting the power option.
    • AC Power
    • PoE (Power over Ethernet)
    Connect power
  4. The Desk phone begins the initialization process.
    Nota The process may take up to 15 minutes.
    Initialization process
  5. After a successful activation, the 911 notification screen is displayed. Press OK.
    Dirección de emergencia



Arriba



T49G Setup

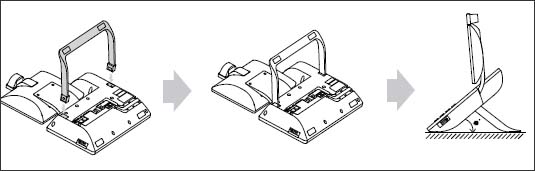

  1. Attach the desk mount stand.
    Desk mount

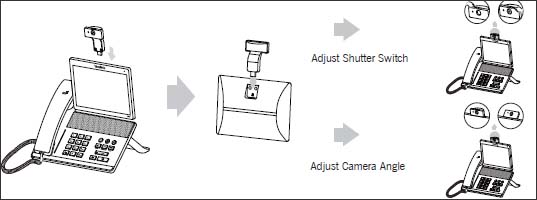

  2. Insert the camera.
    Install cam

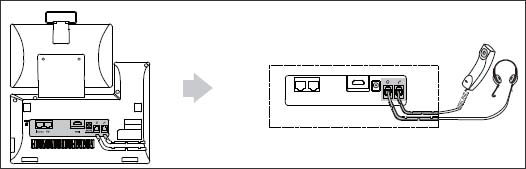

  3. Connect the headset.
    Nota The wireless headset adapter and headset are sold separately.
    Connect headset

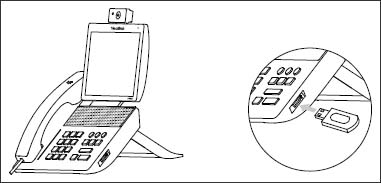

  4. If preferred, connect the USB flash drive.
    Insert USB drive

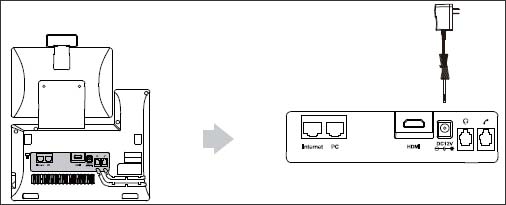

  5. Connect the power source.
    Connect power
  6. Connect to the network by selecting one of the following options:
    Nota Contact your IT administrator before selecting the network connectivity option.

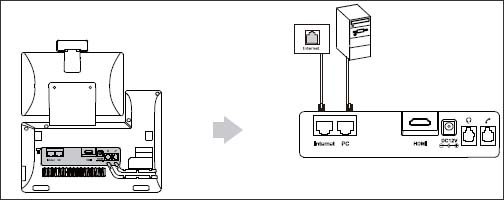

    • Connect to a wired network.
      Connect to wired network
    • Connect to a wireless network:
      1. From the desk phone display, navigate: Settings > Basic > Wi-Fi.
      2. Tap On.
      3. Select an available wireless network from the list of networks.
      4. If the network is secure, enter the password in the PIN field.
      5. Tap OK to connect.
  7. The Desk phone begins the initialization process.
    Nota The process may take up to 15 minutes.
    Initialization process
  8. After successful activation, the 911 notification screen is displayed. Press OK.
    Dirección de emergencia



Arriba



T41S / SW, T42S, and T46S / SW Setup

  1. Attach the desk mount stand.
    Desk mount
  2. Connect the headset.
    Nota The wireless headset adapter and headset are sold separately.
    Connect headset
  3. Connect the optional USB adapter as shown below:
    Nota The USB port can be used to connect the BT40 Bluetooth USB adapter or WF50 Wi-Fi USB adapter.

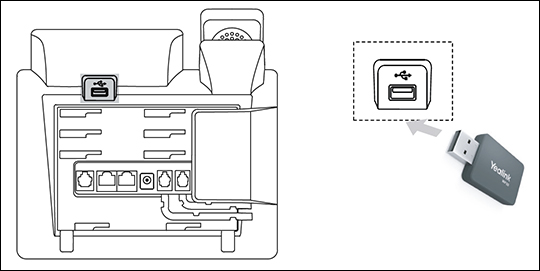

    Nota T41SW and T46SW models include the WF50 Wi-Fi adapter. It can be purchased separately for other models. Bluetooth adapter BT40 can be purchased separately.
    WF50 Wi-Fi adapter
  4. Connect the power and Ethernet by selecting one of the following options:
    Nota Contact the IT administrator before selecting the power option.
    • AC Power
    • PoE (Power over Ethernet)

Connect power

  1. The Desk phone begins the initialization process.
    Nota The process may take up to 15 minutes.
    Nota The phone displays 'Initializing, please wait during this process.'
  2. After successful activation, the 911 notification screen displays. Press OK.
    Nota To view your 911 address, press the Address key to the right of the LCD screen.

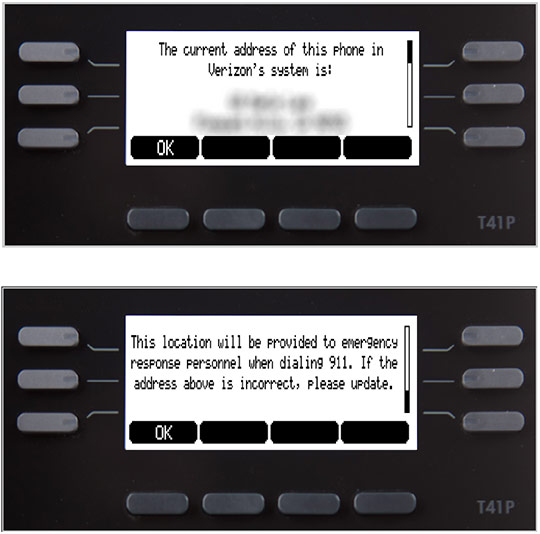

    • T41S/SW and T42S models:
      911 address screen

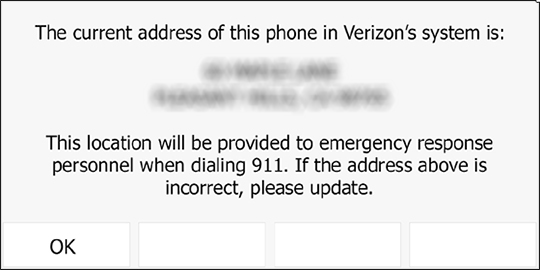

    • T46S/SW models:
      911 address screen



Arriba



One Talk DECT IP Phone

Nota The W60 bundle includes a base station (W60) and (1) handset (W56HV). The W56HV handset that shipped as part of the bundle will automatically link to the base station.

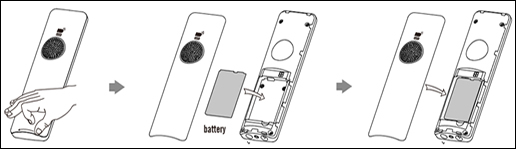

  1. Insert the battery into the W56HV Handset.
    Nota Use the supplied charging cradle power adapter (5V/600mA). With the battery charged, you can use the handset to monitor the progress of the base station initialization and registration process.
    Insertar la batería
  2. Turn the handset on.
  3. Set up the base station using one of the following options:
    • Desktop setup option
    • Wall mount setup option
  4. Connect the base station to the power and Ethernet by selecting one of the following options:
    Nota Contact your IT administrator before selecting the power option.
    • AC Power
      Nota Use the supplied charging cradle power adapter (5V/600mA).
    • PoE (Power over Ethernet)
  5. After your phone is powered on, the system boots up and performs automatic phone initialization.
    Nota When your One Talk phone is connected to the network and powered on, it automatically starts the initialization process. The LCD screen displays Initializing, please wait during this process.? The phone finishes the initialization by loading the saved configuration.
  6. After starting up and confirming the 911 address, the phone is ready for use.
  7. To register additional handsets:
    1. On the W60 base, press and hold the Page/Sync Button (looks like a Wi-Fi icon) on the base station until the top LED blinks (The pattern is a fast three blinks, happens after approx. 4 seconds).
    2. On the W56 handset, press OK then navigate: Settings > Registration > Register Handset.
    3. Choose the desired base station and press OK.
    4. After the handset finds the base station press OK.
    5. Enter the base station PIN (default: 0000) and press the Done soft key to finish registration.
    6. Follow steps 1-5 to register a handset to multiple base stations.
      Nota Be sure to choose a base station that has not already been selected to avoid overwriting the existing selection.
  8. To de-select handsets:
    1. From the main screen, press the Navigational button (located in the middle) on the W56HV Handset then navigate: Settings > Registration > De-reg. Handset.
    2. Enter the base station PIN (default: 0000) and press the Done soft key.
    3. From the list of handsets displayed on the LCD screen, highlight the desired handset name and press OK.
    4. When the screen prompts 'De-register Handset', press the Yes soft key to de-register the handset.



Arriba



VZP59

  1. Attach the desk mount stand.
    Install desk mount
  2. Insert the camera.
    Nota If necessary, remove the rubber plugs first.
    Install camera
  3. Connect the headset.
    Nota The wireless headset adapter and headset are sold separately.
    Connect handset / headset
  4. If preferred, connect USB devices.
    Nota Different USB devices can be used, such as a USB flash drive, USB headset, etc.
    Connect USB peripherals
  5. Connect the power source.
    Nota The AC adapter is optional; the phone can also run on Power over Ethernet (PoE).
    Connect power source
  6. Connect to the network by selecting one of the following options:
    Nota Contact your IT administrator before selecting the network connectivity option.
    • Connect to a wired network.
      Connect Ethernet
    • Connect to a wireless network:
      1. From the desk phone display, swipe left or right to go to the second idle screen.
      2. Navigate: Settings > Basic > Wi-Fi.
      3. Tap the desired network (SSID) to connect to it.
        Nota If the network you want to connect to isn't available, tap the Options icon Ícono Options then tap Scan to search for available networks.
      4. If the network is secure, enter its password in the Password field then tap Connect.
        Nota Tap (check) Show password to show characters as they're being entered.
        Nota If necessary, tap (check) Show advanced options to configure the HTTP proxy for the Browser application.
  7. The desk phone begins the initialization process.
    Nota The process may take up to 15 minutes.
  8. From the 911 notification screen, tap OK.
    Nota The 911 screen displays after successful activation.
    911 address screen



Arriba



CP860

  1. Connect the power and Ethernet by selecting one of the following options:
    Nota Contact your IT administrator before selecting the power option.
    • AC Power
    • PoE (Power over Ethernet)
    Connect cables
  2. If preferred, connect a USB flash drive to record and play back.
    Nota The USB flash drive is sold separately.

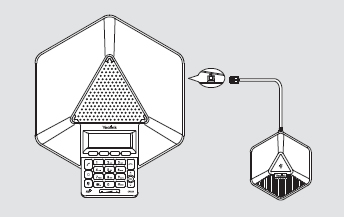

  3. Connect the optional expansion microphone(s).
    Nota Optional CPE80 Conference Microphone extenders can be purchased separately for use in larger conference rooms. Up to two expansion microphones can be connected to the IP conference phone.
    Extensions
  4. The Desk phone begins the initialization process.
    Nota The process may take up to 15 minutes.
    Initialization process
  5. After successful activation, the 911 notification screen is displayed. Press OK.
    Dirección de emergencia



Arriba



CP920

  1. Connect the power and wired network.
    Nota You have two options for network and power connections. Your system administrator will advise you which one to use.
    Nota You can also connect to a Wi-Fi network after startup. Refer to Step 3 for more information.
    Connect power and network

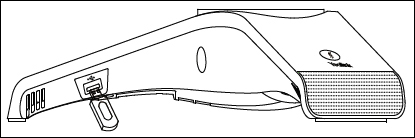

  2. Connect the optional USB flash drive (for use with the USB Call Recording feature).
    Precaución The IP phone should be used with Yealink original power adapter (12V/1A) only. If inline power (PoE) is provided, you don't need to connect the power adapter. Make sure the hub/switch is PoE compliant.
    Connect USB flash drive
  3. Configuring Wi-Fi via the user interface:
    1. Press the Menu soft key and select Settings > Basic > Wi-Fi.
    2. Press the Switch soft key to turn Wi-Fi on.
    3. Press the Save soft key. The phone automatically searches for available Wi-Fi networks in your area.
    4. Select an available wireless network from the list of the available network(s).
    5. Press the Connect soft key to connect to the wireless network.
    6. If the network is secure, enter its password in the Password field then tap the OK soft key.
  4. Startup:
    1. After the IP phone is connected to the network and supplied with power, it automatically begins the initialization process.
      Initialization screen
    2. From the 911 notification screen, press OK.
      Nota The 911 screen displays after successful activation.
      Activación correcta



Arriba



CP960

  1. Connect the power and wired network.
    Nota This conference phone requires the Yealink YLPOE30 Power-over-Ethernet (PoE) adapter, which provides power and wired network connection using the same Ethernet cable.
    Nota You can also connect to a Wi-Fi network after startup. Refer to Step 3 for more information.
    Power connectors
  2. If desired, connect a USB flash drive (for use with the USB Call Recording feature) to either one of the USB ports.
    Nota Only one USB flash drive can be used at a time.
    USB ports
  3. CPE90 wired microphones and CPW90 wireless microphones (sold separately) can also be connected at this time.
    Nota The CPE90 microphone plugs into a 3.5mm microphone port and does not require power.
    Microphone port
  4. Configuring Wi-Fi via the user interface:
    1. En la pantalla de inicio, ve a: Settings > Basic Settings > Wi-Fi.
    2. If necessary, tap the Wi-Fi switch to turn on Interruptor en On.
    3. Tap the desired network (SSID) to connect to it.
      Nota If the network you want to connect to isn't available, tap the Options icon Ícono Options then tap Scan to search for available networks.
    4. If the network is secure, enter its password in the Password field then tap Connect.
      Nota Tap (check) Show password to show characters as they're being entered.
      Nota If necessary, tap (check) Show advanced options to configure the HTTP proxy for the Browser application.
  5. Startup:
    1. After the IP phone is connected to the network and supplied with power, it automatically begins the initialization process.
    2. From the 911 notification screen, tap OK.
      Nota The 911 screen displays after successful activation.
      911 address screen



Arriba
